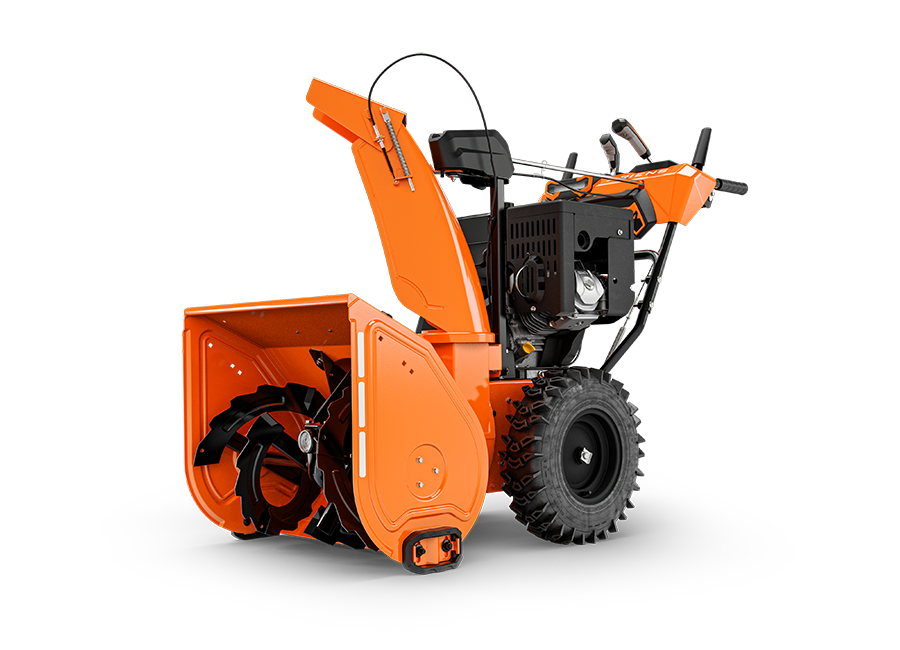

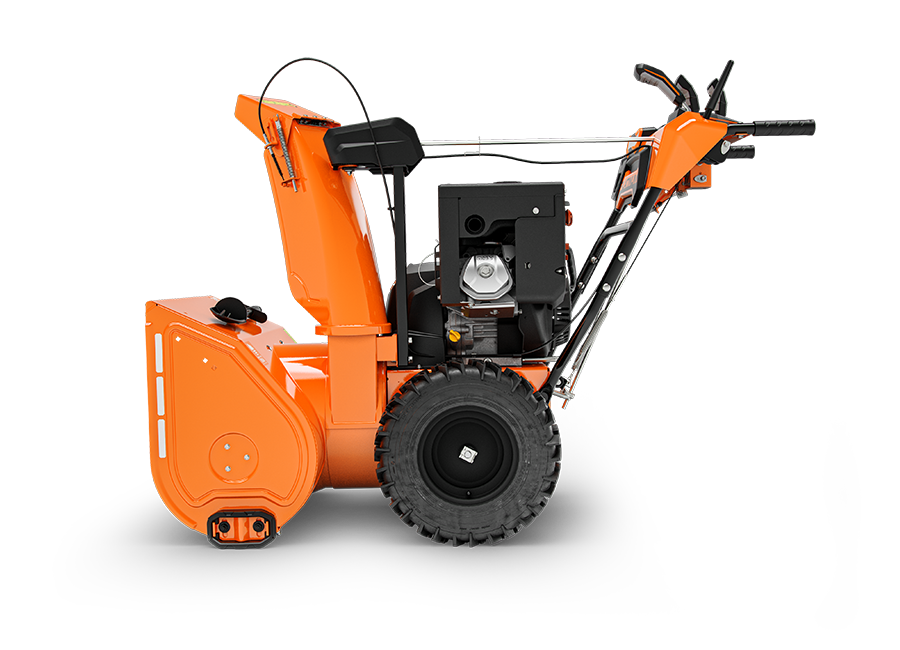

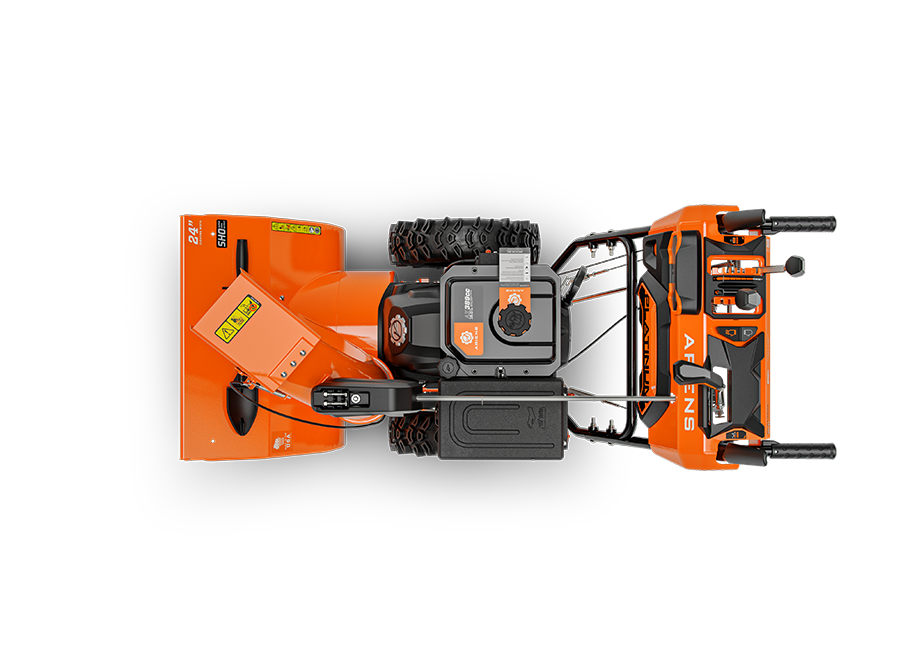

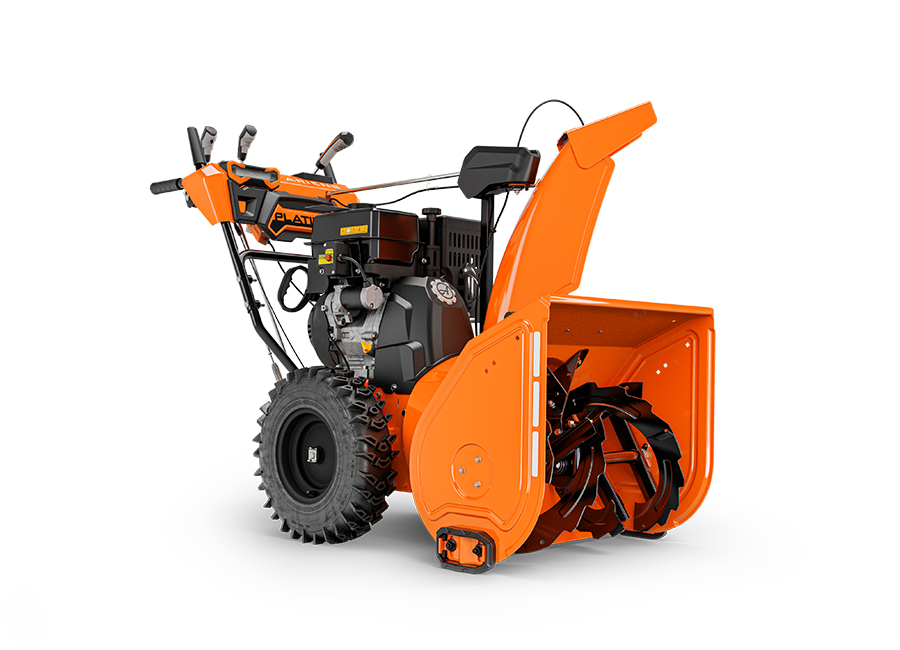

Ariens Platinum 24 SHO
$2099.00
OVERVIEW
Easy push-button electric start Ariens® AX 389cc engine
Wide 24" clearing width that moves 73 tons of snow per hour
Premium features like an LED headlight, handwarmers, a remote deflector, electric start, and a one-hand interlock
POWER TRAIN | |||
|---|---|---|---|
ENGINE | Ariens AX® | ||
ENGINE DISPLACEMENT (IN/CC) | 389 cc | ||
STARTING SYSTEM | 120v / Electric | ||
STEERING | Auto-Turn | ||
DRIVE TYPE | Disc-O-matic | ||
SPEEDS | 6 Forward/2 Reverse | ||
TIRE SIZE | 16 In / 40.6cm | ||
TIRE TYPE | Directional Snow Tread | ||
CLEARING SPECS | |||
|---|---|---|---|
CLEARING WIDTH (IN/CM) | 24 In / 61cm | ||
HOUSING HEIGHT | 21 In / 53.3cm | ||
THROWING DISTANCE | 0.9 m - 16.7 m M / 3 ft - 55 ft | ||
CHUTE ROTATION | Quick Turn | ||
CHUTE TURNING RADIUS | 200 | ||
DEFLECTOR CONTROL | In-Dash Lever | ||
STAGE TYPE | Two Stage | ||
AUGER DIAMETER | 14 In / 35.6cm | ||
AUGER TYPE | Steel Serrated | ||
IMPELLER PROFILE | High Speed Steel 3 Blade | ||
IMPELLER DIAMETER | 14 In / 35.6cm | ||
SKID SHOES | Commercial Shoes | ||
SCRAPER BAR | Steel Adjustable | ||
GEAR CASE | Cast Iron | ||
DIMENSIONS | |||
|---|---|---|---|
LENGTH | 58.3 In / 148.1cm | ||
WIDTH | 26.4 In / 67.1cm | ||
HEIGHT | 45.9 In / 116.6cm | ||
WEIGHT (ASSEMBLED) | 267 lb | ||
WARRANTIES | |||
|---|---|---|---|
PRODUCT WARRANTY | 3 years residential use. 90 days commercial use | ||
GEAR CASE WARRANTY | 5 Year Consumer, 1 Year Commercial | ||
ACCESSORIES | |||
|---|---|---|---|
FEATURES AT A GLANCE | Light Type: LED | ||
