IKON Series
Ariens
$3999.00
DURABILITY AND POWER MEET FUNCTION AND FLEXIBILITY.
Built to take whatever your yard dishes out. Its solid tubular frame delivers rugged support while its plush high-back seat and premium steering grips keep you comfortable while mowing even the biggest lawns.

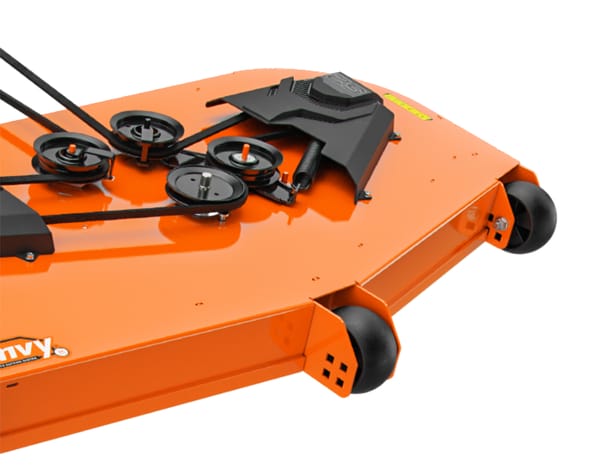

11-gauge fabricated ENVY™ ELITE CUTTING SYSTEM deck is 4 1/2” deep and designed for optimized airflow. Caged anti-scalp wheels make your lawn less susceptible to damage from minor bumps and scrapes.

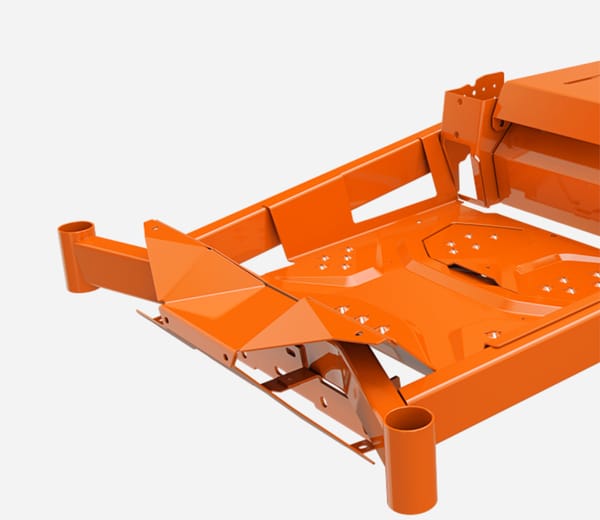

Influenced by our commercial applications, this all-new chassis displays strength and durability with its closed tube frame rails and fully welded construction.

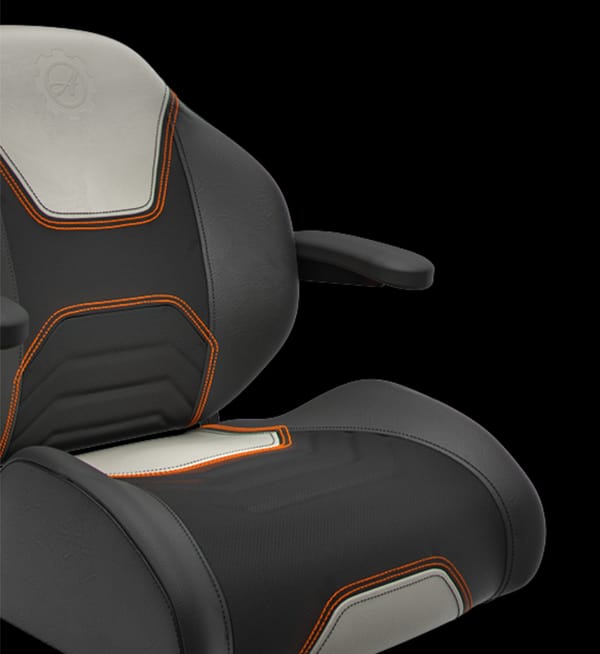

Tall and wide, this seat provides more back support and is mounted on a taller base making it easier to stand up and sit down. Plus, molded armrests for extra comfort.

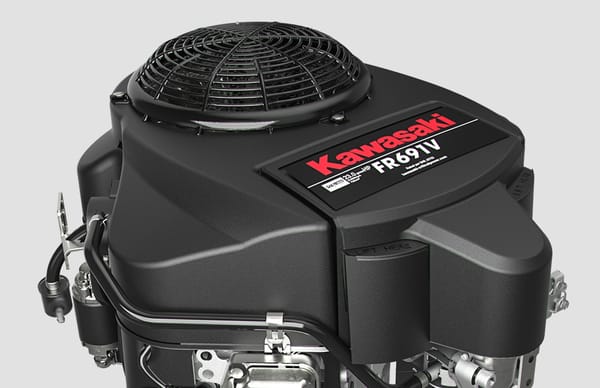

A Kawasaki® FR Series engine delivers all the power your blades and wheels will ever need.

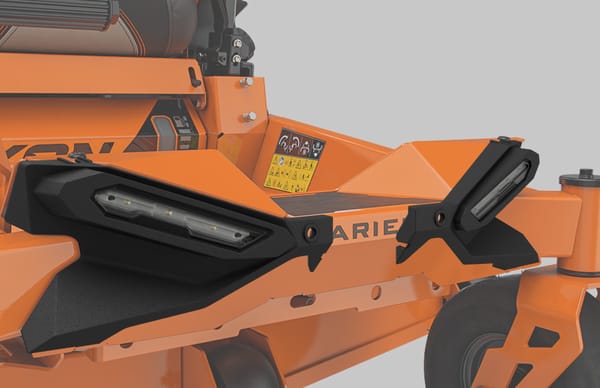

Super bright dual forward lights are 600 lumens so you can see and be seen (warning, do not operate mower at night).

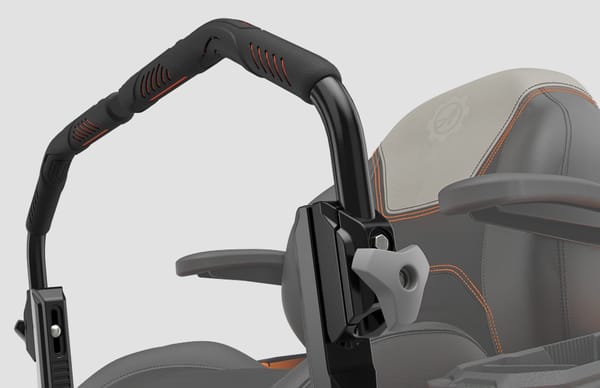

Inspired by power tools these premium hand grips feel great and absorb engine vibration.
OVERVIEW
ENVY™ ELITE CUTTING SYSTEM Deck – 42” cutting width, 11-gauge 4 1/2” deep fabricated deck designed for optimized airflow.
Powerful Engine – Kawasaki® FR651V Twin 21.5 hp/726cc.
Standard Deck Lift Assist – Foot-operated to help lift the deck more easily.
High-Back Seat – Tall and wide with more back support and on a taller base. Plus, molded armrests for extra comfort.
MODEL NUMBER | 918002 | ||
|---|---|---|---|
ENGINE | |||
ENGINE | Kawasaki® FR651V | ||
ENGINE DISPLACEMENT (IN/CC) | 726 cc | ||
HORSEPOWER | 21.5 | ||
FUEL CAPACITY (GAL/LTR) | 3.5 gal / 13.2 ltr | ||
DECK | |||
CUTTING WIDTH (IN/CM) | 42 in / 106.7 cm | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING POSITIONS | 13 | ||
SPINDLE MATERIAL | Forged Aluminum | ||
DECK ENGAGEMENT | Electric Warner | ||
DECK LIFT SYSTEM | Foot Operated | ||
DECK LIFT ASSIST SPRING | Accessory | ||
DRIVE SYSTEM | |||
DRIVE SYSTEM | Hydro-Gear® EZT® Transaxles | ||
GROUND SPEED FORWARD (MPH/KPH) | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE (MPH/KPH) | 3 mph / 4.8 kph | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 654 lb | ||
LENGTH | 74.5 In / 189.2cm | ||
WIDTH (CHUTE UP) | 44.5 in / 113 cm | ||
WIDTH (CHUTE DOWN) | 55.6 in / 141.2 cm | ||
WARRANTY | |||
PRODUCT WARRANTY | 3 Years or 300 Hours | ||
FEATURES | |||
AUXILIARY POWER | USB | ||
FLOOR MAT | Accessory | ||
DECK PAN STORAGE TRAY | Accessory | ||
LIGHTS | Standard | ||
SEAT ISOLATION | Accessory | ||
OVERVIEW
High-Back Seat – Tall and wide with more back support and on a taller base. Plus, molded armrests for extra comfort.
Powerful Engine – Kawasaki® FR651V Twin 21.5 hp/726cc.
Standard Deck Lift Assist – foot-operated to help lift the deck more easily.
ENVY™ ELITE CUTTING SYSTEM Deck – 48” cutting width, 11-gauge 4 1/2” deep fabricated deck designed for optimized airflow.
MODEL NUMBER | 918003 | ||
|---|---|---|---|
ENGINE | |||
ENGINE | Kawasaki® FR651V | ||
ENGINE DISPLACEMENT (IN/CC) | 726 cc | ||
HORSEPOWER | 21.5 | ||
FUEL CAPACITY (GAL/LTR) | 3.5 gal / 13.2 ltr | ||
DECK | |||
CUTTING WIDTH (IN/CM) | 48 in / 121.9 cm | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING POSITIONS | 13 | ||
SPINDLE MATERIAL | Forged Aluminum | ||
DECK ENGAGEMENT | Electric Warner | ||
DECK LIFT SYSTEM | Foot Operated | ||
DECK LIFT ASSIST SPRING | Accessory | ||
DRIVE SYSTEM | |||
DRIVE SYSTEM | Hydro-Gear® EZT® Transaxles | ||
GROUND SPEED FORWARD (MPH/KPH) | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE (MPH/KPH) | 3 mph / 4.8 kph | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 662 lb / 300.2 kg | ||
LENGTH | 74.5 In / 189.2cm | ||
WIDTH (CHUTE UP) | 50.5 in / 128.3 cm | ||
WIDTH (CHUTE DOWN) | 61.6 in / 156.5 cm | ||
WARRANTY | |||
PRODUCT WARRANTY | 3 Years or 300 Hours | ||
FEATURES | |||
AUXILIARY POWER | USB | ||
FLOOR MAT | Accessory | ||
DECK PAN STORAGE TRAY | Accessory | ||
LIGHTS | Standard | ||
SEAT ISOLATION | Accessory | ||
OVERVIEW
Powerful Engine – Kawasaki® FR691V Twin 23 hp/726cc
ENVY™ ELITE CUTTING SYSTEM Deck – 52” cutting width, 11-gauge 4 1/2” deep fabricated deck designed for optimized airflow.
High-Back Seat – Tall and wide with more back support and on a taller base. Plus, molded armrests for extra comfort.
Standard Deck Lift Assist – foot-operated to help lift the deck more easily.
MODEL NUMBER | 918005 | ||
|---|---|---|---|
ENGINE | |||
ENGINE | Kawasaki® FR691V | ||
ENGINE DISPLACEMENT (IN/CC) | 726 cc | ||
HORSEPOWER | 23 | ||
FUEL CAPACITY (GAL/LTR) | 3.5 gal / 13.2 ltr | ||
DECK | |||
CUTTING WIDTH (IN/CM) | 52 in / 132.1 cm | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING POSITIONS | 13 | ||
SPINDLE MATERIAL | Forged Aluminum | ||
DECK ENGAGEMENT | Electric Warner | ||
DECK LIFT SYSTEM | Foot Operated | ||
DECK LIFT ASSIST SPRING | Accessory | ||
DRIVE SYSTEM | |||
DRIVE SYSTEM | Hydro-Gear® EZT® Transaxles | ||
GROUND SPEED FORWARD (MPH/KPH) | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE (MPH/KPH) | 3 mph / 4.8 kph | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 682 lb | ||
LENGTH | 74.5 In / 189.2cm | ||
WIDTH (CHUTE UP) | 55 in / 139.7 cm | ||
WIDTH (CHUTE DOWN) | 66.1 in / 167.9 cm | ||
WARRANTY | |||
PRODUCT WARRANTY | 3 Years or 300 Hours | ||
FEATURES | |||
AUXILIARY POWER | USB | ||
FLOOR MAT | Accessory | ||
DECK PAN STORAGE TRAY | Accessory | ||
LIGHTS | Standard | ||
SEAT ISOLATION | Accessory | ||
