ZT X Series
Gravely
$4599.00
ZT X
BRING SOME PROFESSIONAL STANDARDS TO YOUR LAWN.
This is the residential lawnmower that’s often mistaken for a commercial mowing machine. It’s no surprise with its heavy-duty construction, professional features, and legendary Gravely performance. When you have a ZT X on your lawn, your neighborhood will know you’re upping your lawn game to the next level.

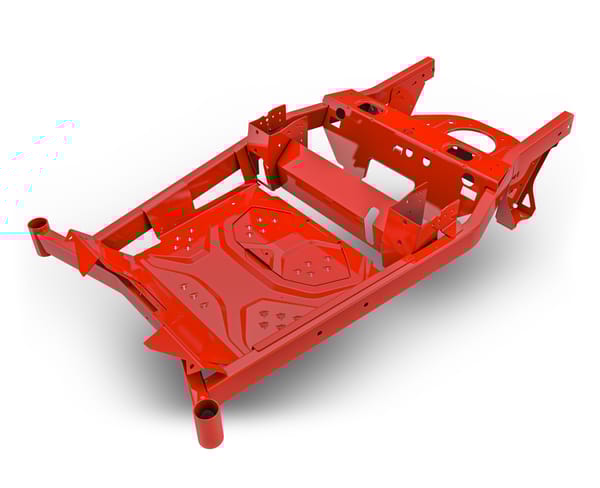

Influenced by our commercial applications, this all-new chassis displays strength and durability with its closed tube frame rails and fully welded construction techniques.

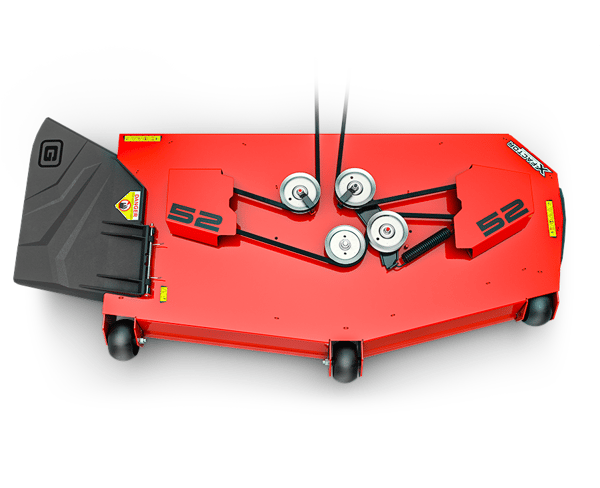

All new 4 1/2 inch-deep deck optimizes airflow, and its reinforced sloped nose allows more room for grass to stand up ahead of the cutting chamber. Caged anti-scalp wheels make your lawn less susceptible to damage from minor bumps and scrapes.
Optimized cooling to ensure smooth running for years to come. New service ports allow oil changes to help extend the life of your machine.
MODEL NUMBER | 918008 | ||
|---|---|---|---|
POWER TRAIN | |||
ENGINE | Kawasaki® FR651V | ||
HORSEPOWER | 21.5 | ||
ENGINE DISPLACEMENT | 44.3 in / 726 cc | ||
FUEL SYSTEM | Gas | ||
FUEL CAPACITY | 3.5 gal / 13.2 ltr | ||

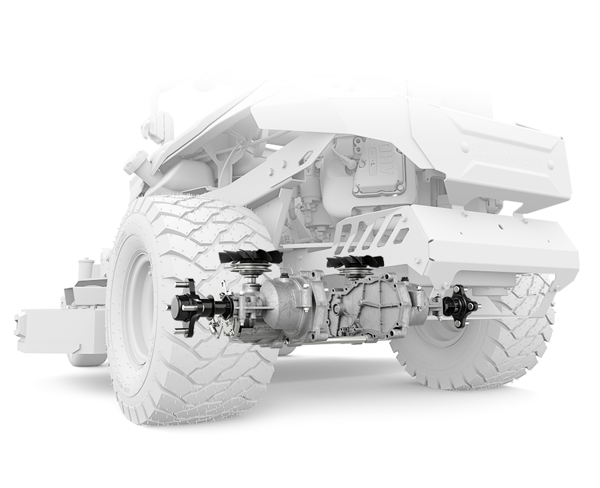

DRIVE SYSTEM | Hydro-Gear® Serviceable EZT® Transaxles | ||
TRANSMISSION TYPE | Hydrostatic | ||
BRAKE TYPE | Integrated Parking Brake | ||
DRIVER POSITION | Sit | ||
GROUND SPEED FORWARD | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE | 3 mph / 4.8 kph | ||
WHEELS FRONT | 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm) | ||
WHEELS REAR | 20.0 x 8.0 in - 8.0 in (50.8 x 20.3 cm - 20.3 cm) | ||
ELECTRIC | |||
BATTERY CAPACITY | 190 CCA | ||
NUMBER OF BATTERIES | 1 | ||
BATTERY VOLTAGE | 12 | ||
BATTERY TYPE | AGM | ||
BATTERY SIZE | U1 Compatible | ||
DECK | |||
DECK SIZE | 42 in / 106.7 cm | ||
COVERAGE HOUR | 2.9 acres / 1.2 hectares | ||
SPINDLE TYPE | Mechanical | ||
DECK MATERIAL | 11 ga | ||
DECK CONSTRUCTION | Fabricated X-Factor® | ||
DISCHARGE CONFIGURATION | Side | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING WIDTH | 42 in / 106.7 cm | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 667 lb | ||
LENGTH | 74.5 in / 189.2 cm | ||
WIDTH (CHUTE UP) | 45.1 in / 114.6 cm | ||
WIDTH (CHUTE DOWN) | 56.2 in / 142.7 cm | ||
MODEL NUMBER | 918009 | ||
|---|---|---|---|
POWER TRAIN | |||
ENGINE | Kawasaki® FR651V | ||
HORSEPOWER | 21.5 | ||
ENGINE DISPLACEMENT | 44.3 in / 726 cc | ||
FUEL SYSTEM | Gas | ||
FUEL CAPACITY | 3.5 gal / 13.2 ltr | ||
DRIVE SYSTEM | Hydro-Gear® Serviceable EZT® Transaxles | ||
TRANSMISSION TYPE | Hydrostatic | ||
BRAKE TYPE | Integrated Parking Brake | ||
DRIVER POSITION | Sit | ||
GROUND SPEED FORWARD | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE | 3 mph / 4.8 kph | ||
WHEELS FRONT | 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm) | ||
WHEELS REAR | 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm) | ||
ELECTRIC | |||
BATTERY CAPACITY | 190 CCA | ||
NUMBER OF BATTERIES | 1 | ||
BATTERY VOLTAGE | 12 | ||
BATTERY TYPE | AGM | ||
BATTERY SIZE | U1 Compatible | ||
DECK | |||
DECK SIZE | 48 in / 121.9 cm | ||
COVERAGE HOUR | 3.4 acres / 1.4 hectares | ||
SPINDLE TYPE | Mechanical | ||
DECK MATERIAL | 11 ga | ||
DECK CONSTRUCTION | Fabricated X-Factor® | ||
DISCHARGE CONFIGURATION | Side | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING WIDTH | 48 in / 121.9 cm | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 679 lb | ||
LENGTH | 74.5 in / 189.2 cm | ||
WIDTH (CHUTE UP) | 51.1 in / 129.8 cm | ||
WIDTH (CHUTE DOWN) | 62.3 in / 158.2 cm | ||
MODEL NUMBER | 918011 | ||
|---|---|---|---|
POWER TRAIN | |||
ENGINE | Kawasaki® FR691V | ||
HORSEPOWER | 23 | ||
ENGINE DISPLACEMENT | 44.3 in / 726 cc | ||
FUEL SYSTEM | Gas | ||
FUEL CAPACITY | 3.5 gal / 13.2 ltr | ||
DRIVE SYSTEM | Hydro-Gear® Serviceable EZT® Transaxles | ||
TRANSMISSION TYPE | Hydrostatic | ||
BRAKE TYPE | Integrated Parking Brake | ||
DRIVER POSITION | Sit | ||
GROUND SPEED FORWARD | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE | 3 mph / 4.8 kph | ||
WHEELS FRONT | 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm) | ||
WHEELS REAR | 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm) | ||
ELECTRIC | |||
BATTERY CAPACITY | 190 CCA | ||
NUMBER OF BATTERIES | 1 | ||
BATTERY VOLTAGE | 12 | ||
BATTERY TYPE | AGM | ||
BATTERY SIZE | U1 Compatible | ||
DECK | |||
DECK SIZE | 52 in / 132.1 cm | ||
COVERAGE HOUR | 3.6 acres / 1.5 hectares | ||
SPINDLE TYPE | Mechanical | ||
DECK MATERIAL | 11 ga | ||
DECK CONSTRUCTION | Fabricated X-Factor® | ||
DISCHARGE CONFIGURATION | Side | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING WIDTH | 52 in / 132.1 cm | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 695 lb | ||
LENGTH | 74.5 in / 189.2 cm | ||
WIDTH (CHUTE UP) | 55.6 in / 141.2 cm | ||
WIDTH (CHUTE DOWN) | 66.7 in / 169.4 cm | ||
