ZT XL Series
Gravely
$5599.00
ZT XL
AN UPGRADE TO ANY PROPERTY.
The ZT XL treats residential properties like a pro thanks to its professional-grade power and heavy-duty features. It’s built to handle big jobs while it delivers the comfort needed to mow acre after acre. This is a residential machine with the heart and soul of a commercial mower.

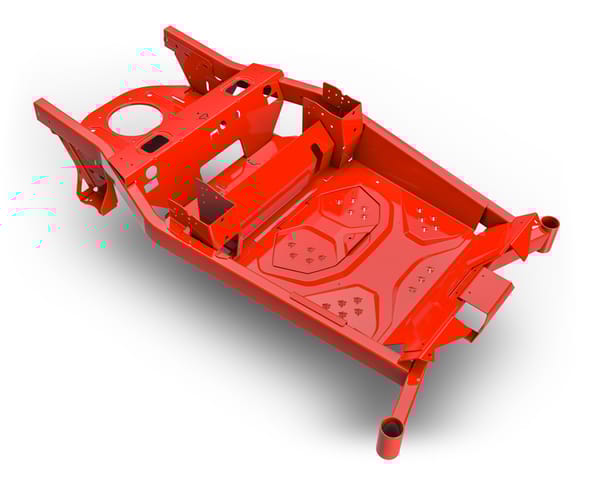

This all-new chassis displays strength and durability with its closed tube frame rails and fully welded construction techniques influenced by our commercial applications.

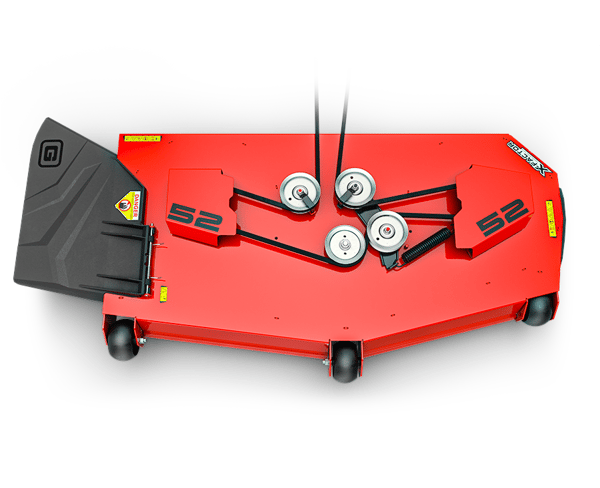

Airflow is optimized in this all new 4 1/2 inch-deep deck. A reinforced sloped nose allows more room for grass to stand up ahead of the cutting chamber and caged anti-scalp wheels protect your lawn from minor bumps and scrapes.

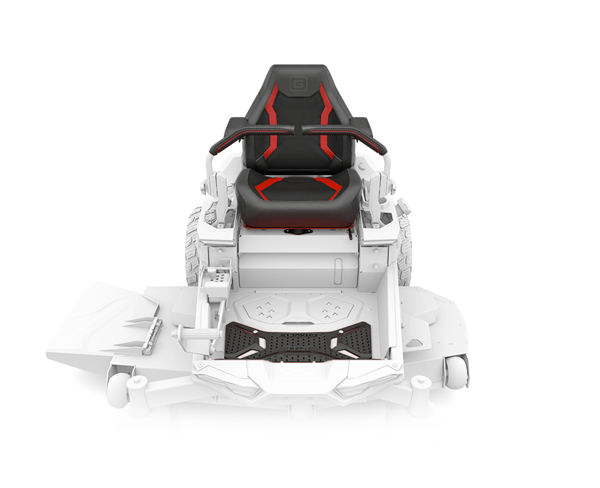

Ready for the long mow! A 22” tall seat provides more back support and is mounted on a taller seat base to make it easier to stand up and sit down. Armrests deliver extra cushion for more comfort.
MODEL NUMBER | 918012 | ||
|---|---|---|---|
POWER TRAIN | |||
ENGINE | Kawasaki® FR651V | ||
HORSEPOWER | 21.5 | ||
ENGINE DISPLACEMENT | 44.3 in / 726 cc | ||
FUEL SYSTEM | Gas | ||
FUEL CAPACITY | 3.5 gal / 13.2 ltr | ||
DRIVE SYSTEM | Hydro-Gear® ZT-2800® Transaxles | ||
TRANSMISSION TYPE | Hydrostatic | ||
BRAKE TYPE | Integrated Parking Brake | ||
DRIVER POSITION | Sit | ||
GROUND SPEED FORWARD | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE | 3 mph / 4.8 kph | ||
WHEELS FRONT | 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm) | ||
WHEELS REAR | 20.0 x 8.0 in - 8.0 in (50.8 x 20.3 cm - 20.3 cm) | ||
ELECTRIC | |||
BATTERY CAPACITY | 190 CCA | ||
NUMBER OF BATTERIES | 1 | ||
BATTERY VOLTAGE | 12 | ||
BATTERY TYPE | AGM | ||
BATTERY SIZE | U1 Compatible | ||
DECK | |||
DECK SIZE | 42 in / 106.7 cm | ||
COVERAGE HOUR | 2.9 acres / 1.2 hectares | ||
SPINDLE TYPE | Mechanical | ||
DECK MATERIAL | 11 ga | ||
DECK CONSTRUCTION | Fabricated X-Factor® | ||
DISCHARGE CONFIGURATION | Side | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING WIDTH | 42 in / 106.7 cm | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 675 lb | ||
LENGTH | 74.5 in / 189.2 cm | ||
WIDTH (CHUTE UP) | 45.1 in / 114.6 cm | ||
WIDTH (CHUTE DOWN) | 56.2 in / 142.7 cm | ||
MODEL NUMBER | 918013 | ||
|---|---|---|---|
POWER TRAIN | |||
ENGINE | Kawasaki® FR691V | ||
HORSEPOWER | 23 | ||
ENGINE DISPLACEMENT | 44.3 in / 726 cc | ||
FUEL SYSTEM | Gas | ||
FUEL CAPACITY | 3.5 gal / 13.2 ltr | ||
DRIVE SYSTEM | Hydro-Gear® ZT-2800® Transaxles | ||
TRANSMISSION TYPE | Hydrostatic | ||
BRAKE TYPE | Integrated Parking Brake | ||
DRIVER POSITION | Sit | ||
GROUND SPEED FORWARD | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE | 3 mph / 4.8 kph | ||
WHEELS FRONT | 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm) | ||
WHEELS REAR | 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm) | ||
ELECTRIC | |||
BATTERY CAPACITY | 190 CCA | ||
NUMBER OF BATTERIES | 1 | ||
BATTERY VOLTAGE | 12 | ||
BATTERY TYPE | AGM | ||
BATTERY SIZE | U1 Compatible | ||
DECK | |||
DECK SIZE | 48 in / 121.9 cm | ||
COVERAGE HOUR | 3.4 acres / 1.4 hectares | ||
SPINDLE TYPE | Mechanical | ||
DECK MATERIAL | 11 ga | ||
DECK CONSTRUCTION | Fabricated X-Factor® | ||
DISCHARGE CONFIGURATION | Side | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING WIDTH | 48 in / 121.9 cm | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 689 lb | ||
LENGTH | 74.5 in / 189.2 cm | ||
WIDTH (CHUTE UP) | 51.1 in / 129.8 cm | ||
WIDTH (CHUTE DOWN) | 62.3 in / 158.2 cm | ||
MODEL NUMBER | 918015 | ||
|---|---|---|---|
POWER TRAIN | |||
ENGINE | Kawasaki® FR691V | ||
HORSEPOWER | 23 | ||
ENGINE DISPLACEMENT | 44.3 in / 726 cc | ||
FUEL SYSTEM | Gas | ||
FUEL CAPACITY | 3.5 gal / 13.2 ltr | ||
DRIVE SYSTEM | Hydro-Gear® ZT-2800® Transaxles | ||
TRANSMISSION TYPE | Hydrostatic | ||
BRAKE TYPE | Integrated Parking Brake | ||
DRIVER POSITION | Sit | ||
GROUND SPEED FORWARD | 7 mph / 11.3 kph | ||
GROUND SPEED REVERSE | 3 mph / 4.8 kph | ||
WHEELS FRONT | 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm) | ||
WHEELS REAR | 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm) | ||
ELECTRIC | |||
BATTERY CAPACITY | 190 CCA | ||
NUMBER OF BATTERIES | 1 | ||
BATTERY VOLTAGE | 12 | ||
BATTERY TYPE | AGM | ||
BATTERY SIZE | U1 Compatible | ||
DECK | |||
DECK SIZE | 52 in / 132.1 cm | ||
COVERAGE HOUR | 3.6 acres / 1.5 hectares | ||
SPINDLE TYPE | Mechanical | ||
DECK MATERIAL | 11 ga | ||
DECK CONSTRUCTION | Fabricated X-Factor® | ||
DISCHARGE CONFIGURATION | Side | ||
CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
CUTTING WIDTH | 52 in / 132.1 cm | ||
DIMENSIONS | |||
WEIGHT (ASSEMBLED) | 705 lb | ||
LENGTH | 74.5 in / 189.2 cm | ||
WIDTH (CHUTE UP) | 55.6 in / 141.2 cm | ||
WIDTH (CHUTE DOWN) | 66.7 in / 169.4 cm | ||
